QN series spherical concentrator
Product Description：
use

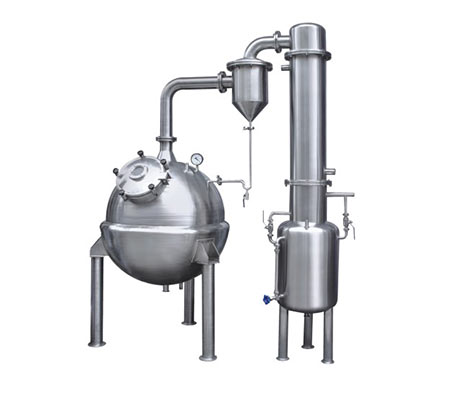

The spherical concentrating tank is mainly composed of four parts: a concentrated tank main body, a condenser, a vapor-liquid separator and a liquid receiving tank. It can be used in the processes of concentration, distillation and recovery of organic solvent in the pharmaceutical, food, chemical and other industries. Due to the concentration under reduced pressure, the concentration time is short and the effective components of the heat sensitive material are not destroyed. The contact parts of the equipment and materials are made of stainless steel, which has good corrosion resistance, durable and meets GMP medical standards.
Technical Parameters
| Model | QN-300 | QN-500 | QN-700 | QN-1000 |
| evaporation amount | 70 | 120 | 145 | 195 |
| Nominal volume | 300 | 500 | 700 | 1000 |
| and the inner diameter of the ball | 800 | 990 | 1115 | 1250 |
| vapor pressure | 0.098 | |||
| vacuum degree | 0.06-0.07MPa | |||
| heating area | 1.1 | 1.6 | 2 | 2.5 |
| condensing area | 2.4 | 3.2 | 3.5 | 4.5 |
| Dimensions | 1900*1100*2300 | 2030*1200*2500 | 2100*1300*2500 | 2335*1520*2765 |
| Device weight | 380 | 450 | 630 | 950 |
| Gas consumption | 77 | 132 | 159 | 214 |
| Water consumption | 2 | 4 | 6 | 7 |
| Steam import | 25 | 25 | 40 | 40 |
| Water Import and Export | 30 | 30 | 40 | 40 |
