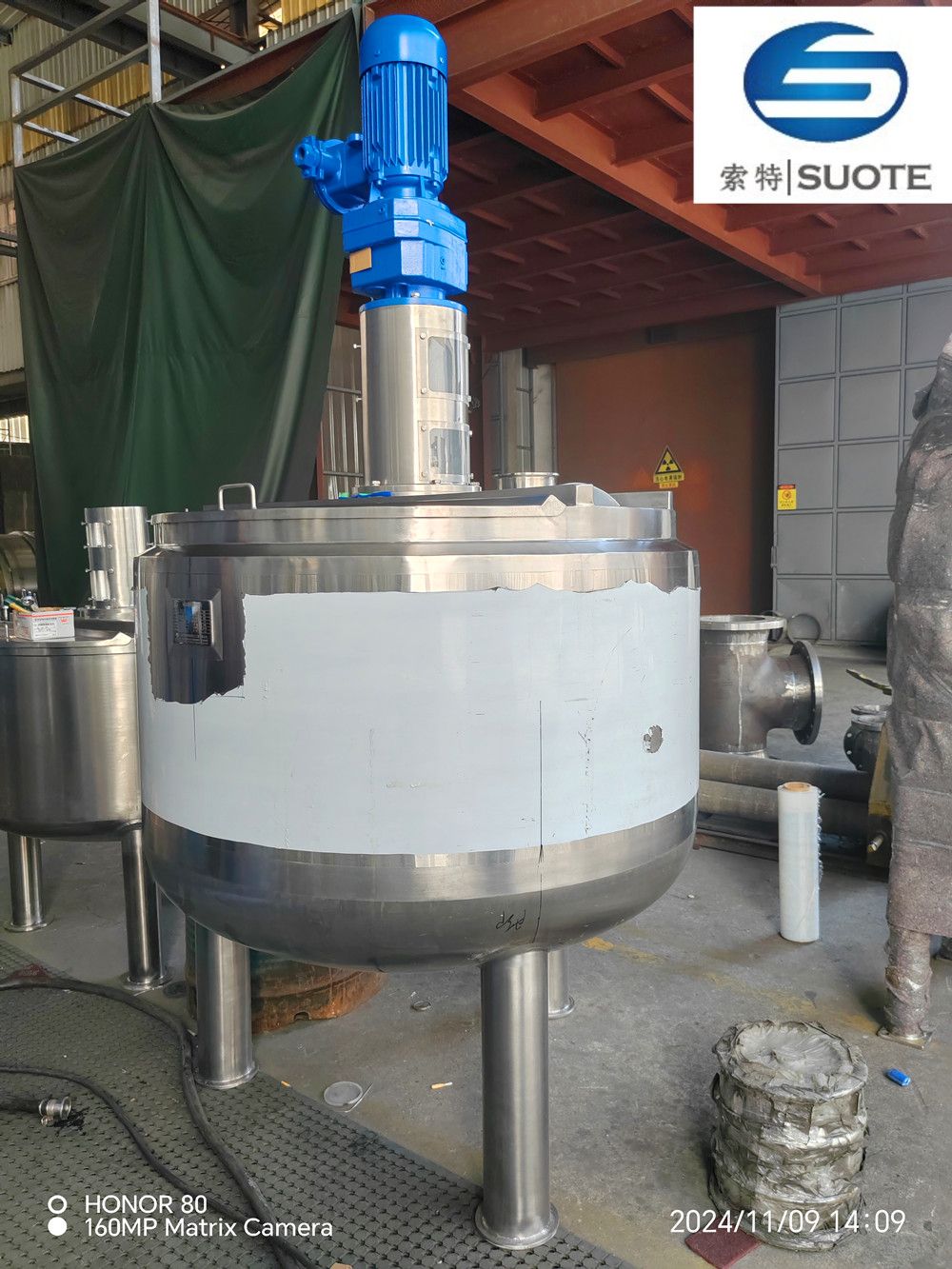

Wenzhou Suote Pharmaceutical and Chemical Engineering Co., Ltd. has recently launched a batch of insulated mixing tanks.
DATE：2024-11-11
Wenzhou Suote Pharmaceutical and Chemical Engineering Co., Ltd. has recently launched a batch of insulated mixing tanks. The mixing tank is used for operations such as mixing, blending, homogenizing, and equalizing of materials. The structure and configuration of the stainless - steel mixing tank can be standardized and humanized designed according to the requirements of the production process. During the mixing process, this mixing tank can achieve feed - in, discharge, and mixing control, and also support other manual or automatic control functions.
The insulated mixing tanks of Suote Machinery adopt double - faced mechanical seals. Mechanical seals are divided into two types: single - faced and double - faced. The single - faced mechanical seal is less expensive. However, when the single - faced mechanical seal fails to meet the requirements, the double - faced mechanical seal must be used.
If the stirring medium is highly toxic, flammable, explosive, high - purity (and relatively expensive) materials, or if it needs to be operated under high - vacuum conditions with extremely high sealing requirements, and both packing seals and mechanical seals cannot meet the requirements, a fully - enclosed magnetic transmission device can be selected.
In addition, the materials for the mixing tank body, tank cover, agitator, and shaft seal can be selected from carbon steel or stainless steel, etc. according to different process requirements. The mixing tank body and tank cover can be connected by flange sealing or welding. According to the process requirements, process pipe holes for feed - in, discharge, observation, temperature measurement, pressure measurement, steam fractionation, and safety venting can be opened on the mixing tank body and tank cover. The upper part of the tank cover is equipped with a transmission device (motor or reducer), which drives the agitator inside the tank through the transmission shaft. The shaft seal device can adopt various forms such as mechanical seal, packing seal, and labyrinth
